EnerLINE Medium Voltage Switchboards

SUBCOE ESP Switchboards

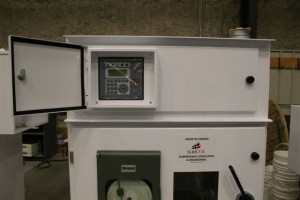

EnerLINE DOL Switchboard Front

EnerLINE DOL Switchboard Front

At SUBCOE we understand that the control exerted over the quality of the electric power feeding the motor system may have a big impact on your business. Our SUBCOE EnerLINE direct-on-line and soft starting switchboards are built to meet CSA standards so you will receive years of uninterrupted reliable service. Our CUBE motor controller is integrated to give digital control over the vacuum contactor starter to provide full monitoring and alarming based upon the real time three phase voltage, current, frequency and power factor values. The CUBE directly monitors the medium voltage output to provide near instantaneous short circuit protection for your valuable submersible pump motor.

The SUBCOE EnerLINE switchboard may be used with any motor regardless of manufacturer or type. As a standard the board comes complete with fused disconnect switch, vacuum contactor, current limiting fuses, optional amp chart recorder, instrument and control transformers, rogowski coils (current), lightning arrestors, control switches, push buttons, pilot lights.

SUBCOE Switchboard Specifications

Enclosure

  • Type IP55, dust/rain proof
  • Application Outdoor
  • Material 2mm thick sheet steel
  • Finish Powder coated smooth
  • Gasketting Neoprene
  • Cable terminations Separate lockable enclosure
  • Low voltage compartment Separate lockable enclosure
  • High voltage compartment Separate lockable enclosure, door interlocked
  • Base frame 90mm U channel
  • Lifting eye four top mounted

Rating

  • Maximum voltage 3600/4800 Volts
  • Maximum current 160/200
  • Interrupting current 4400 amps
  • Frequency 50/60 Hertz
  • Temperature -40 °C to +60 °C

Fusing

  • Power Fuse Type Bussman JCL or equivalent
  • Rating 5500 Volts
  • Interrupting 50 kA
  • Control Fuse Type E rated, current limiting, 5000 Volt

Vacuum Contactor

  • Manufacturer Joslyn Clark
  • Voltage Rating 600/1500/2500/3300/5000 Volts
  • Current Rating 160/200 Amps
  • Control Voltage 120/240 V, 50/60 Hz
  • Interrupting current 4400 Amps
  • Expected life 1,000,000 operations
  • Auxiliary Contacts 2 NO & 2 NC

Amp Chart Recorder (Optional)

  • Manufacturer Bristol Babcock
  • Enclosure Rating NEMA 4, die cast aluminum
  • Finish Grey epoxy
  • Chart Drive Spring wound
  • Cartridge Fiber tip pen
  • Meter Movement Moving iron
  • Input range 0-5 Amp
  • Frequency 50/60 Hz.
  • Chart 8” circular, 1 or 7 day
  • Obsolete end 2014, SUBCOE ACR replaces Q4-2014

Instrument Transformer

  • Rating 25 VA
  • Primary Voltage 0-3600 Volt
  • 0-5400 Volt (5 kV board)
  • Secondary Voltage 120 Volt
  • EnerLINE-CUBE
  • EnerLINE CUBE Intelligent Motor Controller
  • Frequency 50/60 Hz.
  • BIL 10 kV

Control Transformer

  • Rating 1 kVA
  • Primary Voltage 730/860/1020/1205/1420/
  • 1685/1990/2180/2560/
  • 3030/3600Volt
  • 1900/2100/2300/2800/ 3080/3400/3750/4200/ 4400/4700/5000 Volt
  • (5 kV board)
  • Secondary Voltage 120 Volt
  • Phase Single
  • Frequency 50/60 Hz.
  • BIL 10 kV

Current Transformer

  • Type CT Transformer
  • Ratio 75/100/150/200:5
  • Rating 600 Volt
  • Frequency 50-400 Hz.

Power Cable

  • Rating 7500 Volts
  • Size #1/0 AWG Tinned stranded copper

PT Wire

  • Rating 15000 Volts
  • Size #14 AWG TEW

Lugs

  • Type Aluminum Alloy
  • Size #6-350 MCM

Paint

  • Description Epoxy powder coat smooth, white or RAL9003
  • Thickness 5 mil
